Rescue helicopter XL

A 2 metre ride-in helicopter in 12 mm birch plywood, as a kit.

€1,003.95incl. 21% VAT

Made for you, ships within 10 working days

Delivered in 1 box

Shipping €18.09 for 1 box (Netherlands)

Collect in Edam: free

Rather on a pallet? Ask for it
  • Secure payment with iDEAL
  • 14 days to change your mind
  • From our own workshop

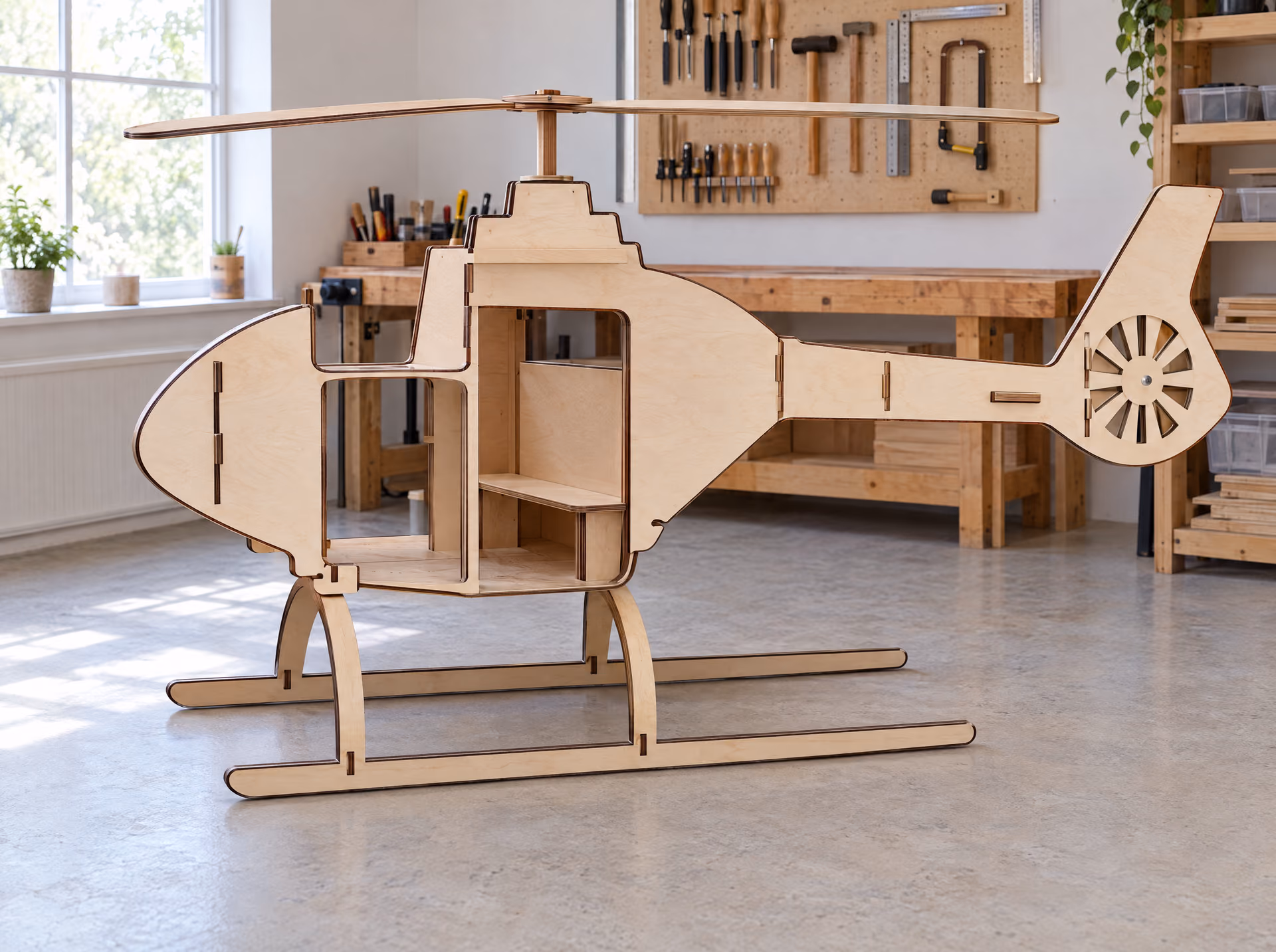

The Rescue helicopter XL built, in its place

What you build

A helicopter 2 metres long: two side walls in the silhouette of a light helicopter, with a large door opening, bulkheads, floor, seat and roof between them, a tail rotor in the tail and a rotor on a mast, on two skids.

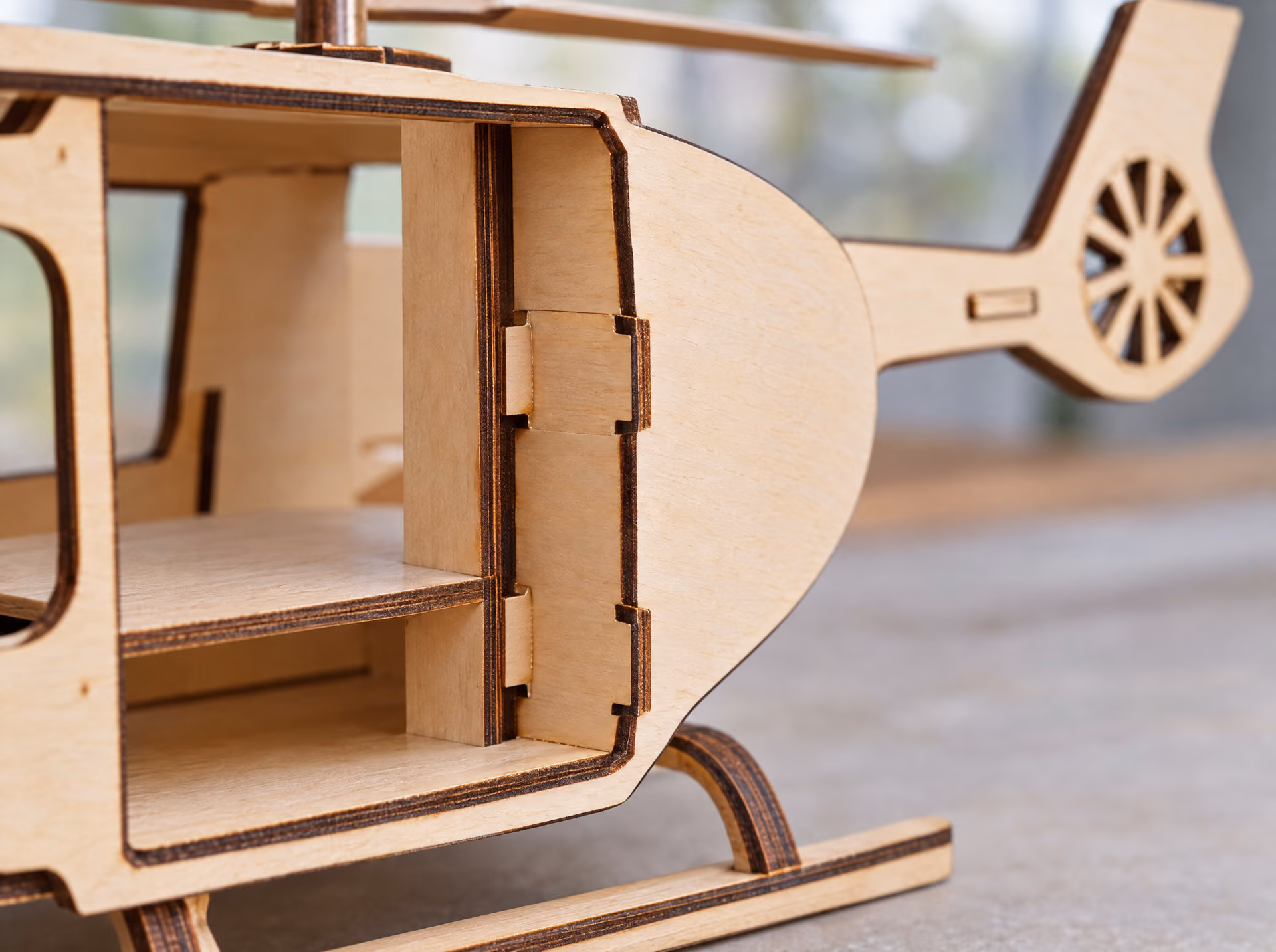

All in 12 mm birch plywood, cut and numbered, with tabs and slots that drop into each other. A kit for adult builders, built in three to five days.

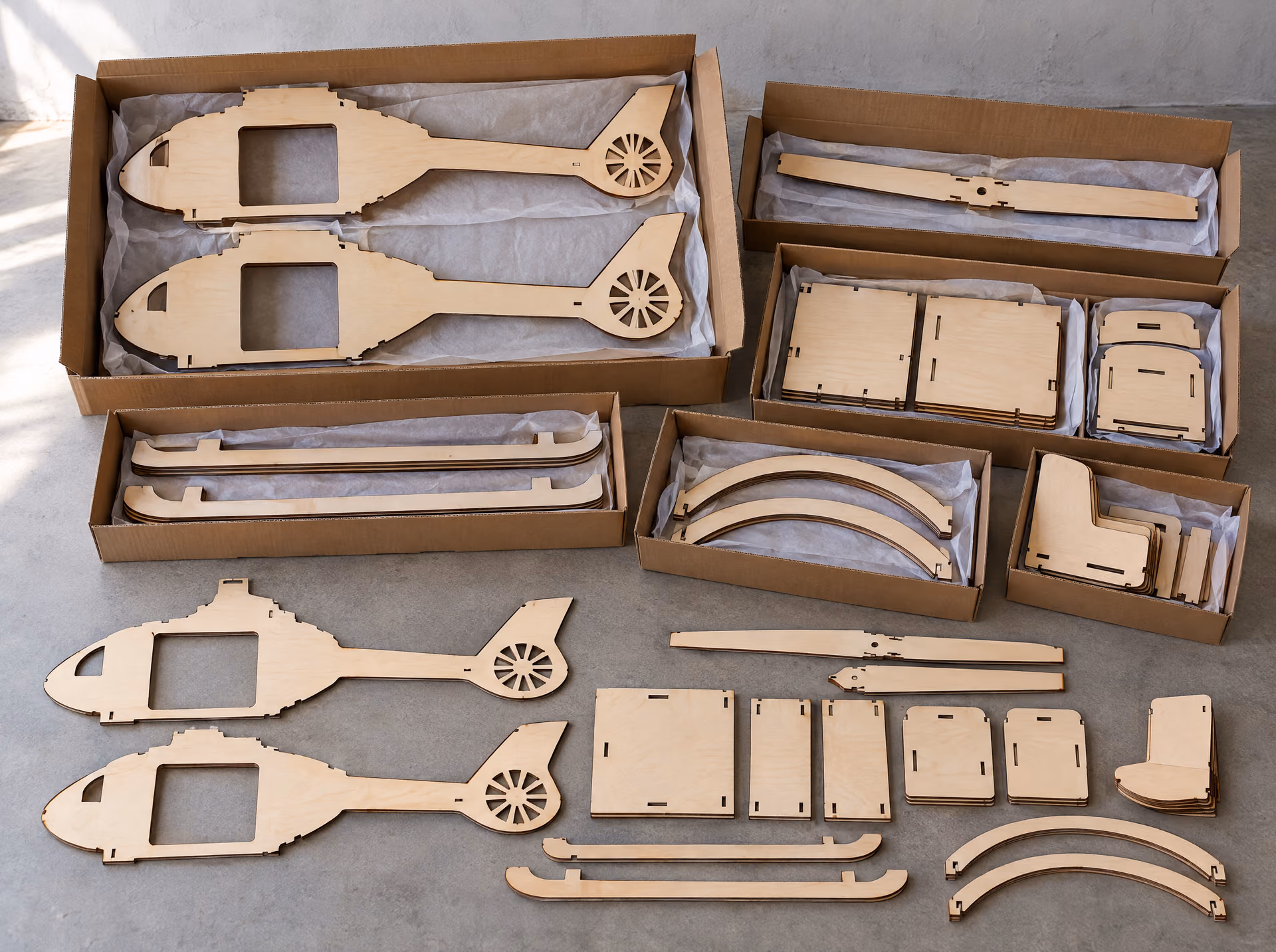

What is in the box

What is in the box
Number of parts32
Sheet material6 × Birch plywood 12 mm
Tools neededWaterproof wood glue, Glue clamps (at least ten), Sandpaper and sanding block, Spanners M8 and M10, Brushes for the lacquer
Build time3 to 5 days
Number of boxes1
2,400 × 600 mm
The sheet, drawn from the cut file

Technical drawing

Technical drawing of the Rescue helicopter XL in views
The design in views, drawn from the same data as the cut files

How it goes together

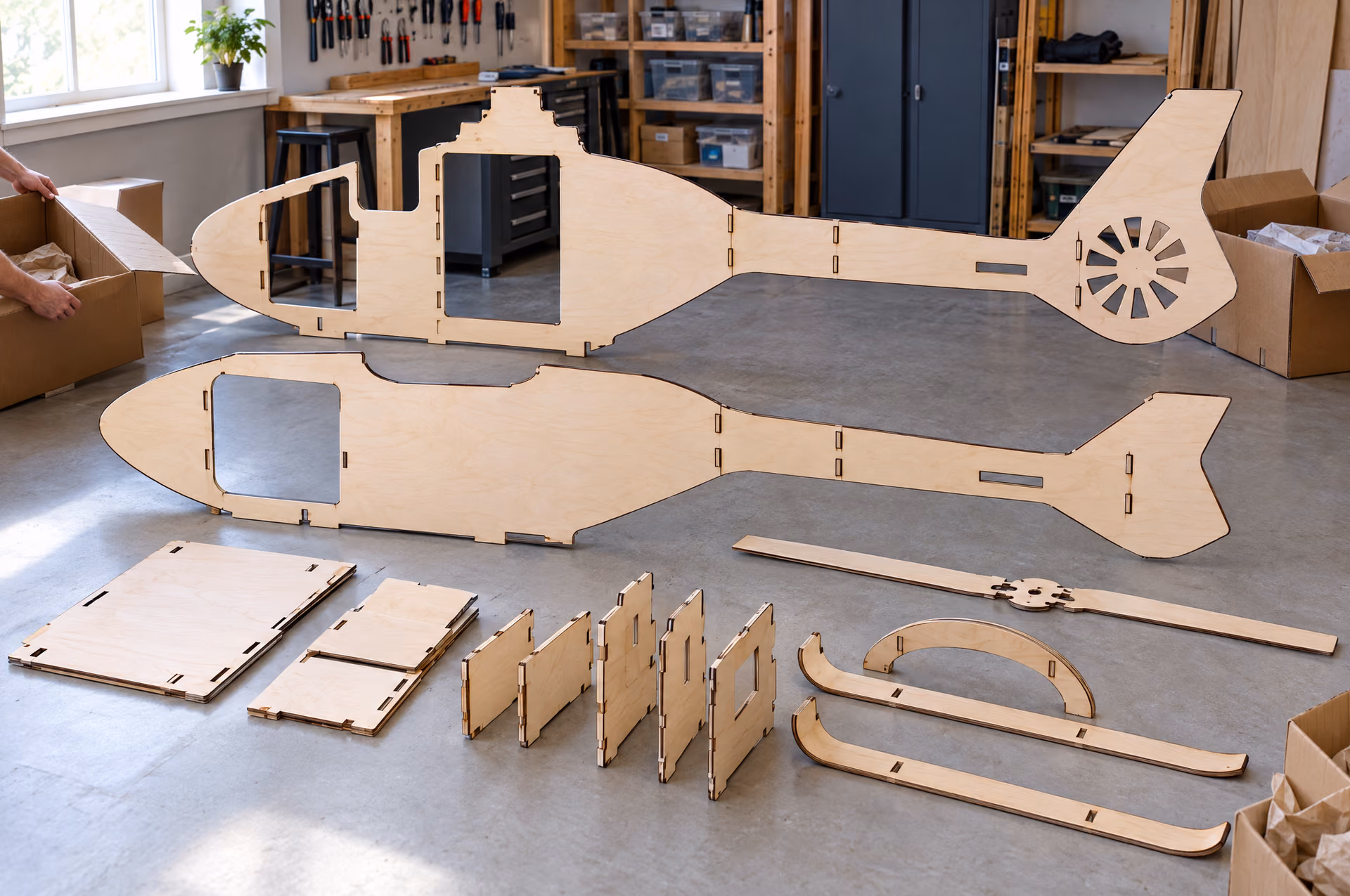

  1. Unpacking: the parts of the Rescue helicopter XL laid out per group next to the boxes

    Unpack

    Every box is a building phase. Lay the parts out per group; their code is engraved on them.

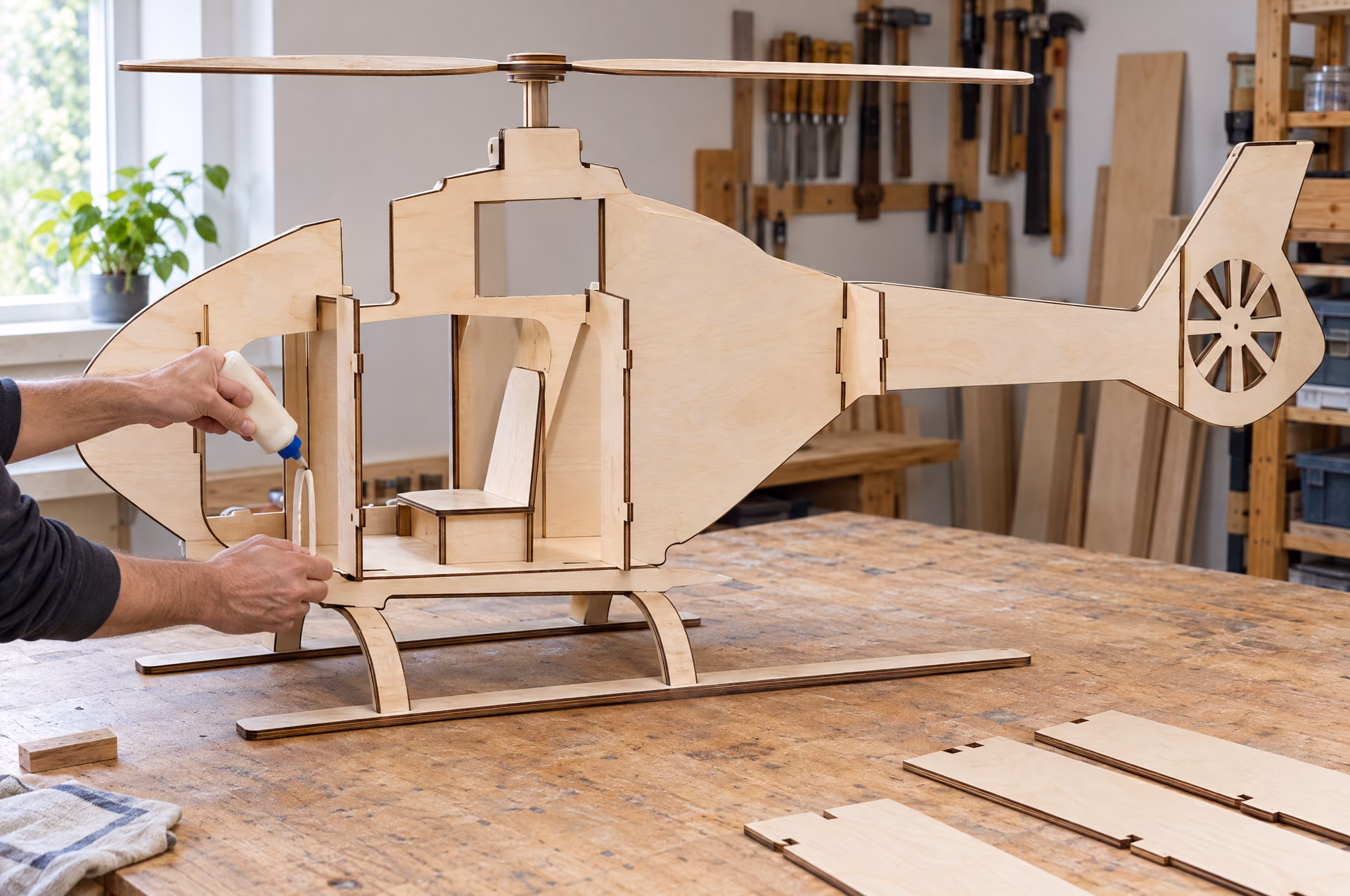

  2. The frame of the Rescue helicopter XL being built

    The frame

    Keel and formers, walls and bulkheads, or spokes and hub: dry-fit and square first, then glue.

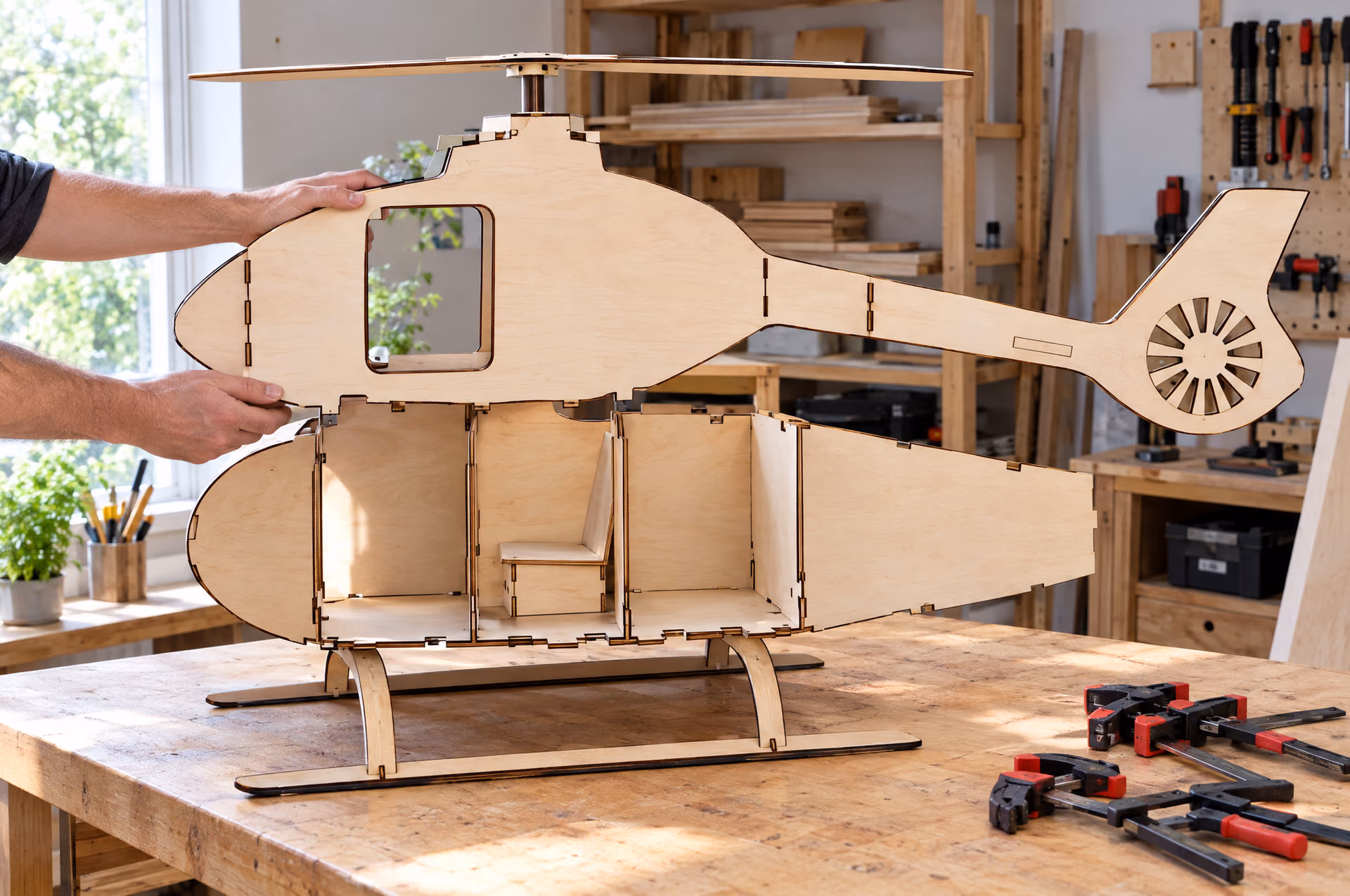

  3. The large surfaces of the Rescue helicopter XL going on

    Close it up

    The large surfaces go on: skin, walls, deck or platform, clamped until the glue has set.

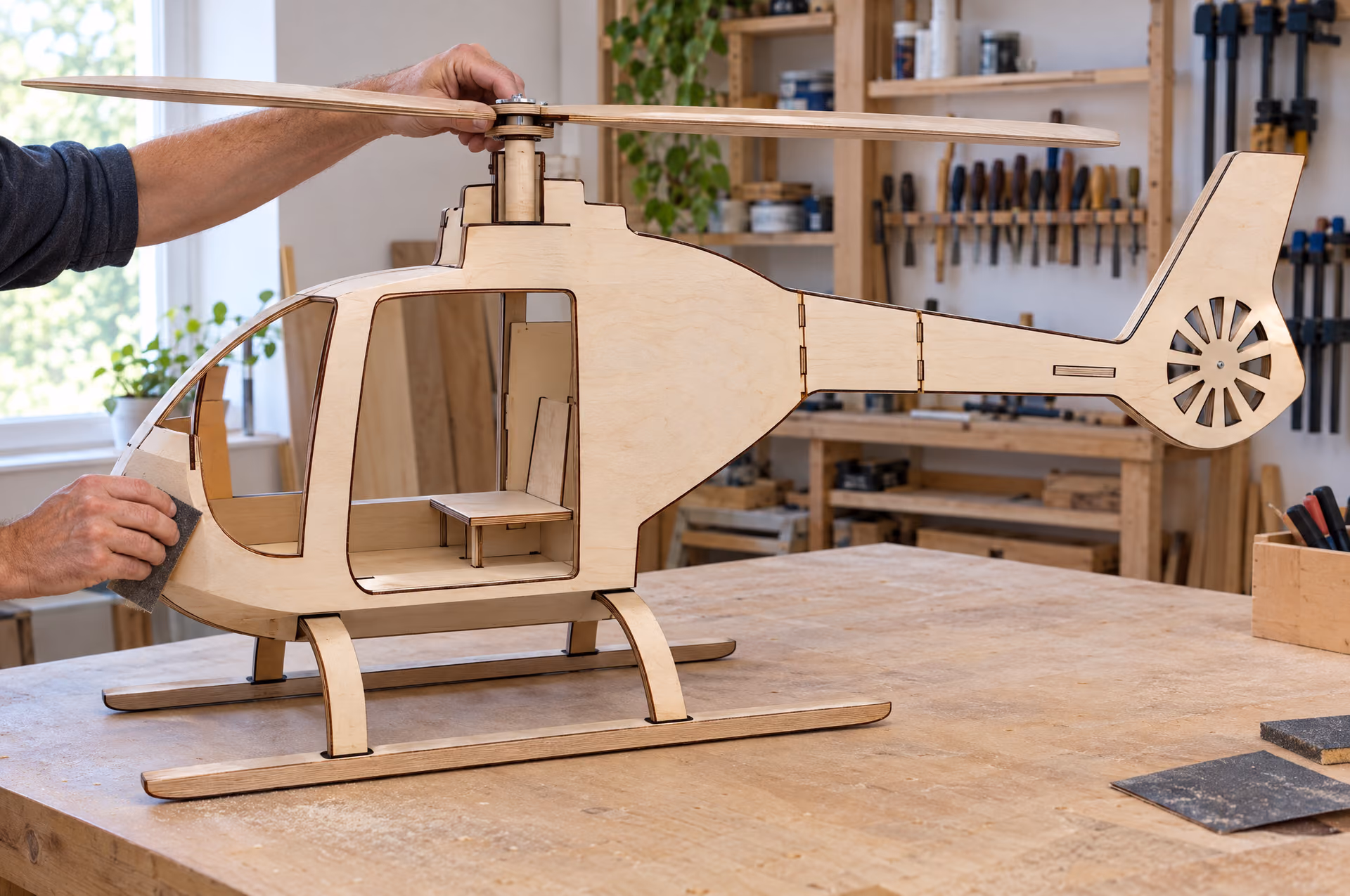

  4. The Rescue helicopter XL being finished and lacquered

    Finish

    Round the edges, sand and lacquer. Then go through the safety paragraph.

Technical specifications

Technical specifications
Built size2,010 × 640 × 835 mm
Sheet size2,400 × 600 mm
Weight builtabout 26 kg
Room to build3.5 × 2.5 m
DifficultyMedium
Article numberreddingsheli-xl

To buy yourself

Bolts, bearings, wheels, axle, glue and lacquer are not in the kit. This is what you need, with the quantities from the design.

To buy yourself
Skid bow bolt8 pcs, M8, met ring en borgmoer
Wood glueas needed
Water-based lacqueras needed

Downloads

There is no sample page for this product yet.

Safety

  • This is a kit for adult builders. It is not a toy and carries no CE marking.
  • Round and sand all edges and corners smooth before the model is used.
  • Use only under adult supervision.
  • Maximum load: 35 kg. Check glue joints and bolts before every use.
  • Lacquer or paint the whole; let the finish cure completely.

Based on an open design

Silhouette based on “Helicopter Kit Card - EC 135” by soukup273 (MakerWorld), CC BY 4.0.

View the originalCC BY 4.0
