Bouwkit
  • 2,400 × 600 mm

    This is how it comes out of the sheet

Jet XL

A 3.1 metre ride-in jet with an open cockpit, as a kit.

€2,598.95incl. 21% VAT

Made for you, ships within 10 working days

Delivered in 2 boxes

Shipping €36.18 for 2 boxes (Netherlands)

Collect in Edam: free

Rather on a pallet? Ask for it
  • Secure payment with iDEAL
  • 14 days to change your mind
  • From our own workshop

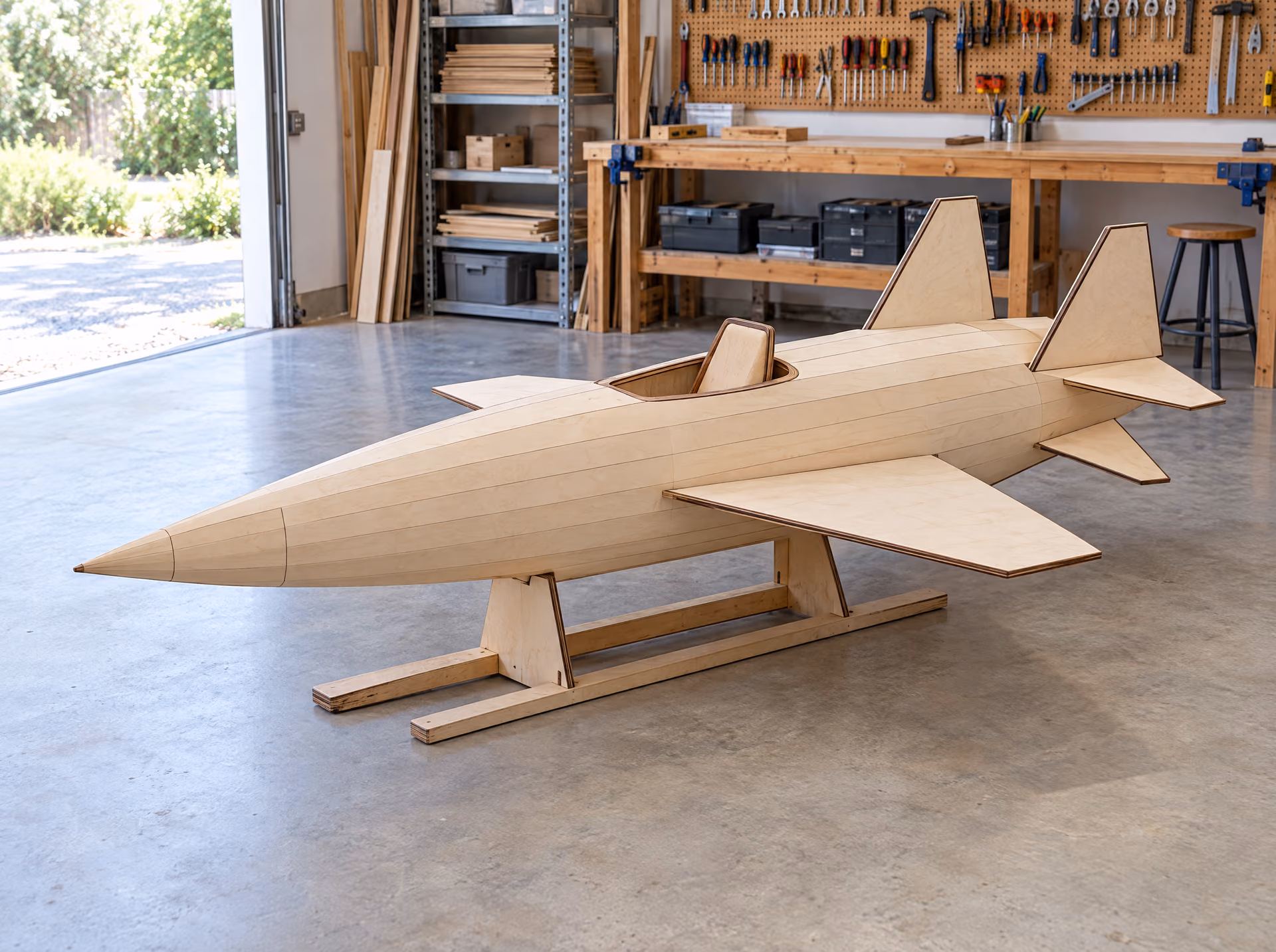

The Jet XL built, in its place

What you build

A jet 3.1 metres long with a 2.1 metre wingspan, to build yourself. Poplar ring formers on a birch plywood keel, planked with thin birch strips, with an open cockpit, a seat and two tail fins, on a base with runners.

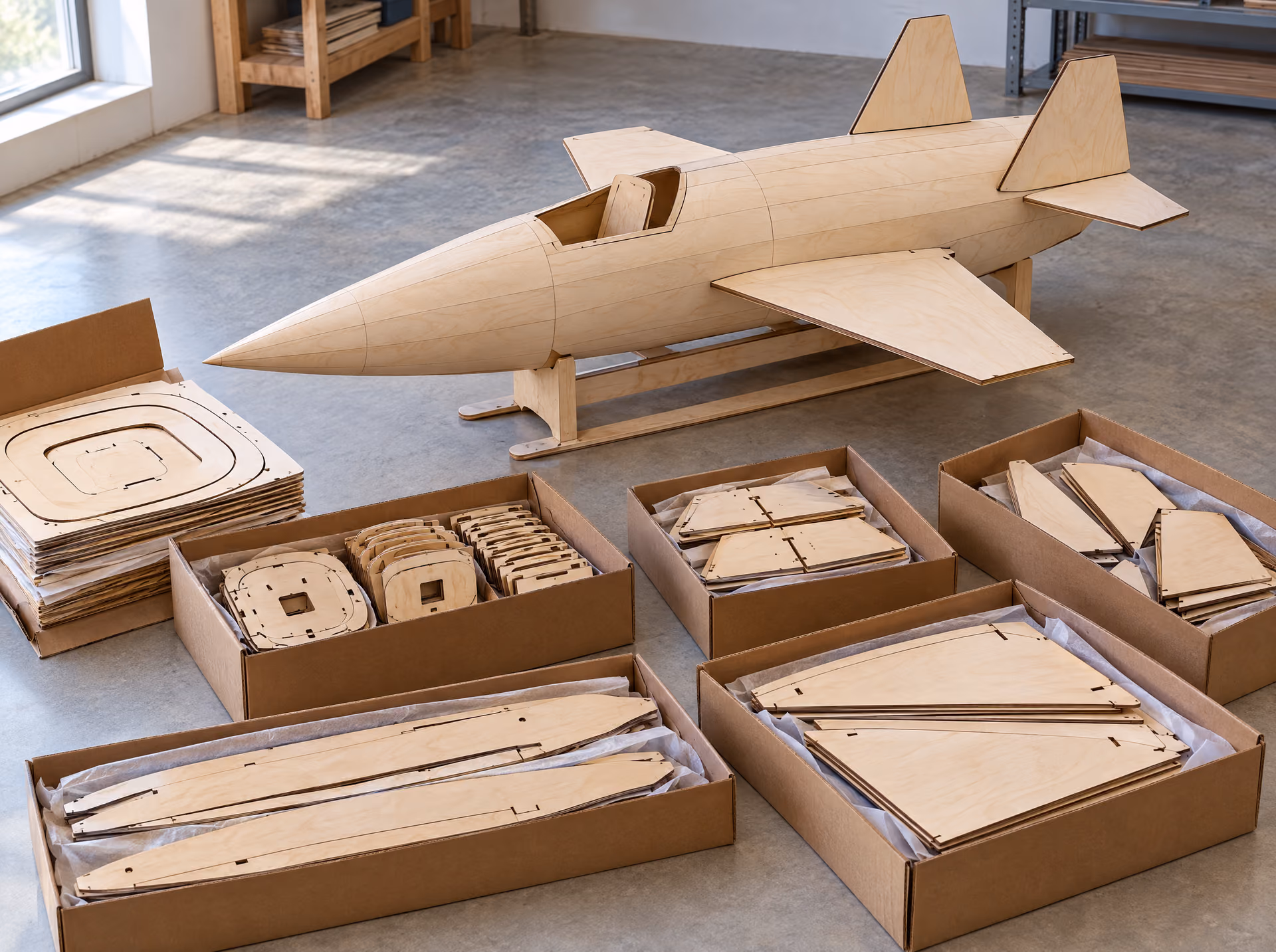

Every part arrives cut and numbered, packed in boxes by building phase. This is a kit for adult builders: plan six to ten days, with glue clamps and patience.

What is in the box

What is in the box
Number of parts204
Sheet material6 × Birch plywood 12 mm, 7 × Poplar plywood 6 mm, 12 × Birch plywood 3 mm
Tools neededWaterproof wood glue, Glue clamps (at least ten), Sandpaper and sanding block, Cordless drill, Tape measure and square, Brushes for the lacquer
Build time6 to 10 days
Number of boxes2
2,400 × 600 mm
The sheet, drawn from the cut file

Technical drawing

Technical drawing of the Jet XL in views
The design in views, drawn from the same data as the cut files

How it goes together

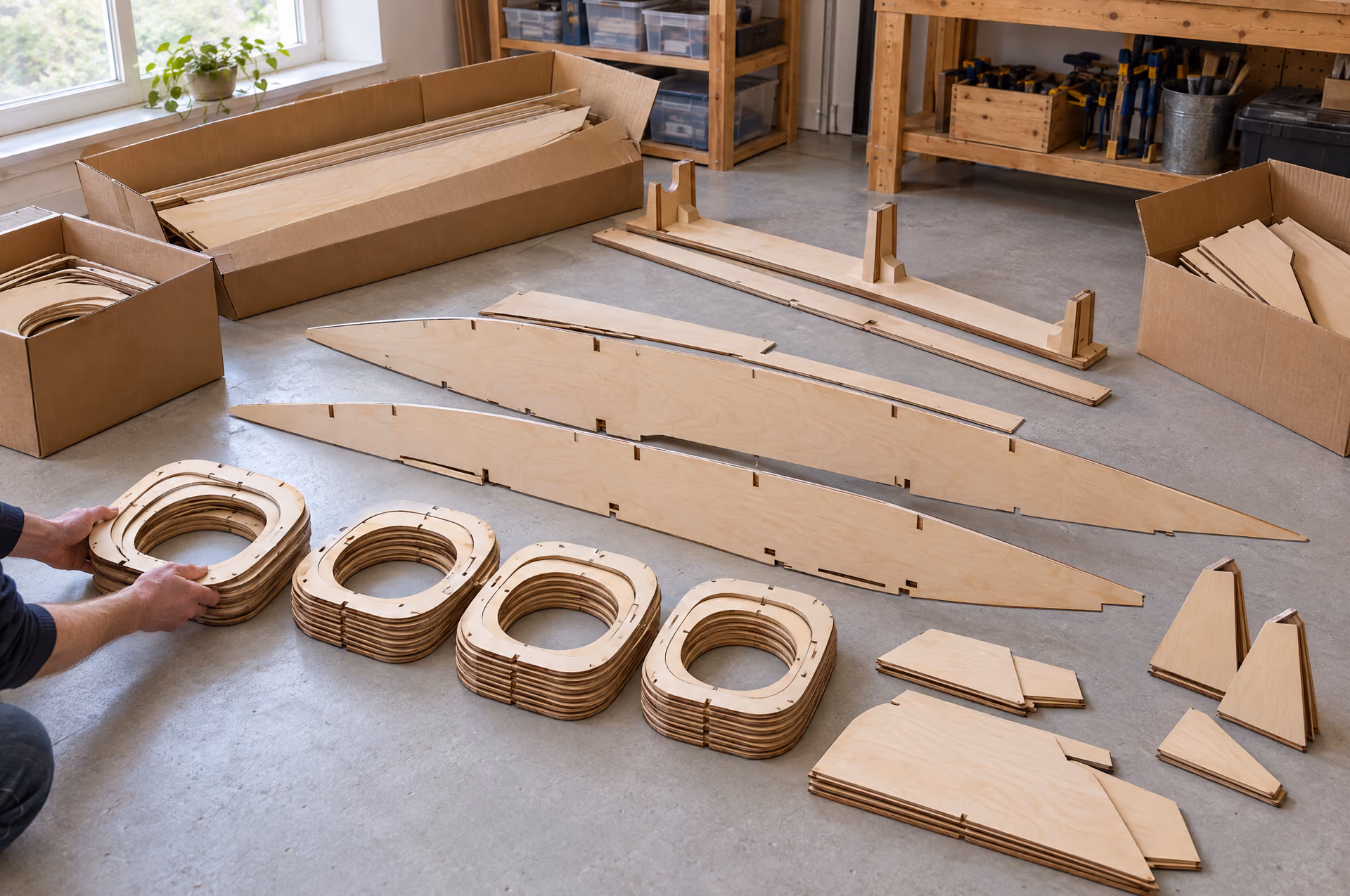

  1. Unpacking: the parts of the Jet XL laid out per group next to the boxes

    Unpack

    Every box is a building phase. Lay the parts out per group; their code is engraved on them.

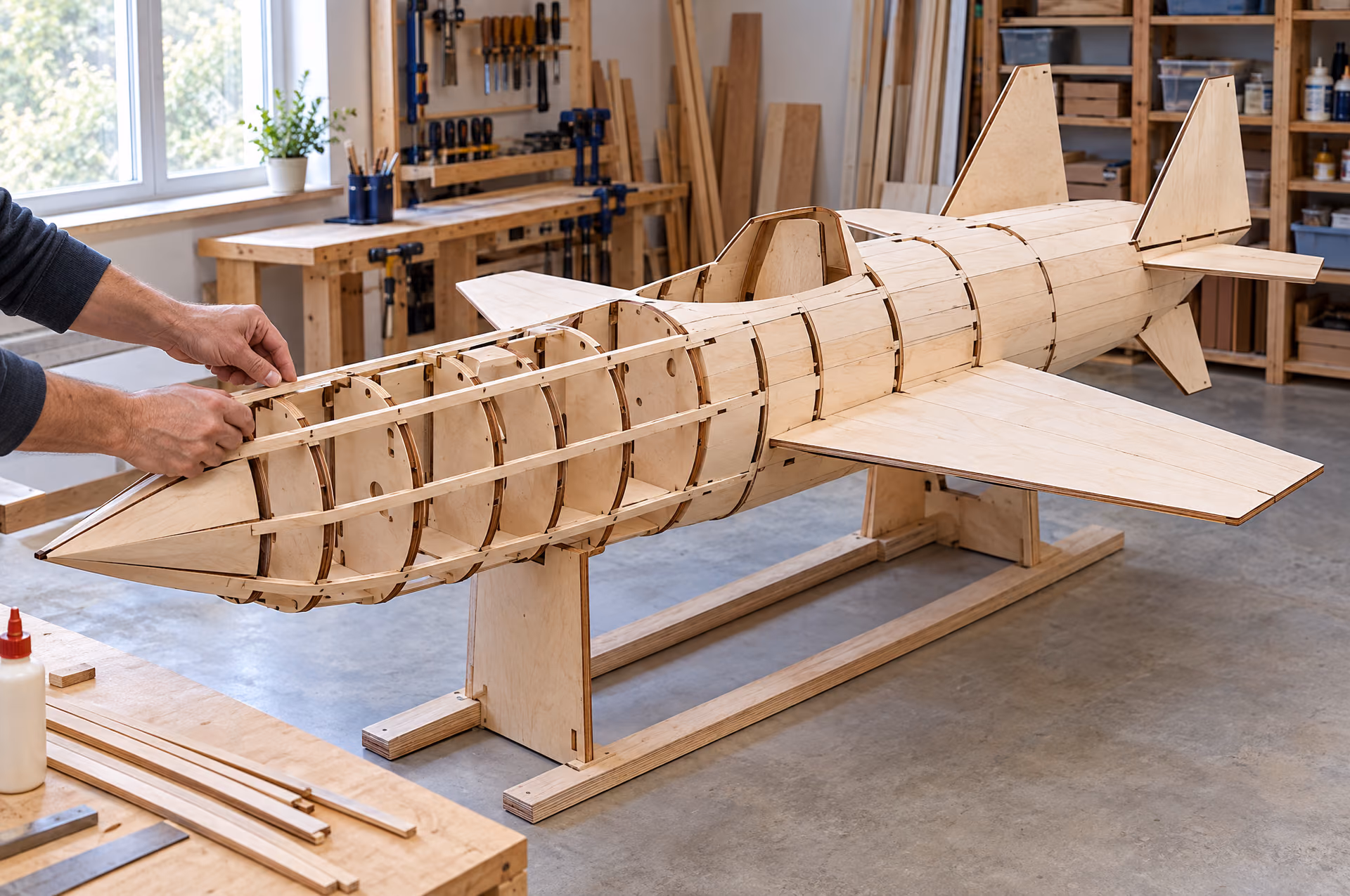

  2. The frame of the Jet XL being built

    The frame

    Keel and formers, walls and bulkheads, or spokes and hub: dry-fit and square first, then glue.

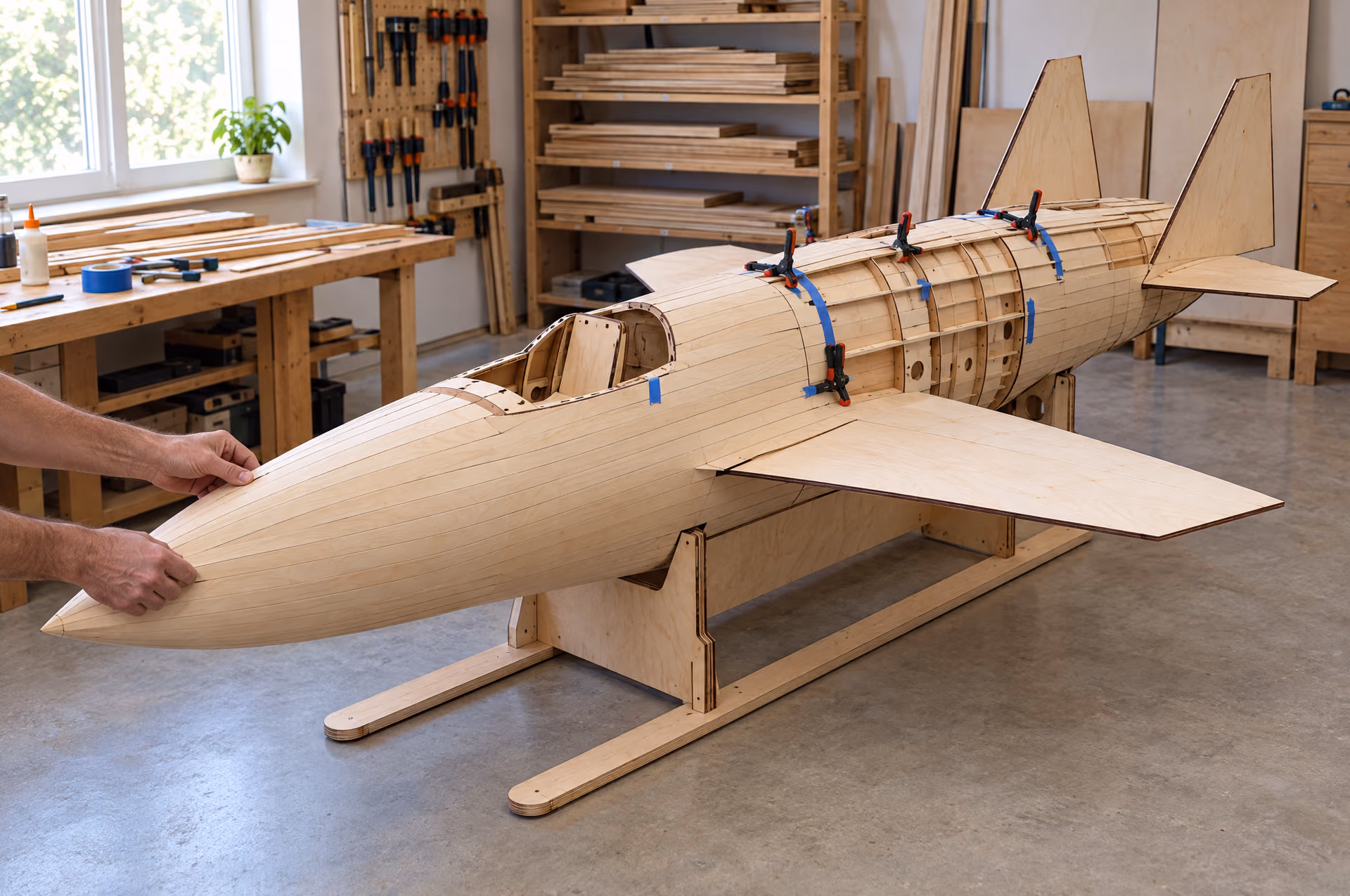

  3. The large surfaces of the Jet XL going on

    Close it up

    The large surfaces go on: skin, walls, deck or platform, clamped until the glue has set.

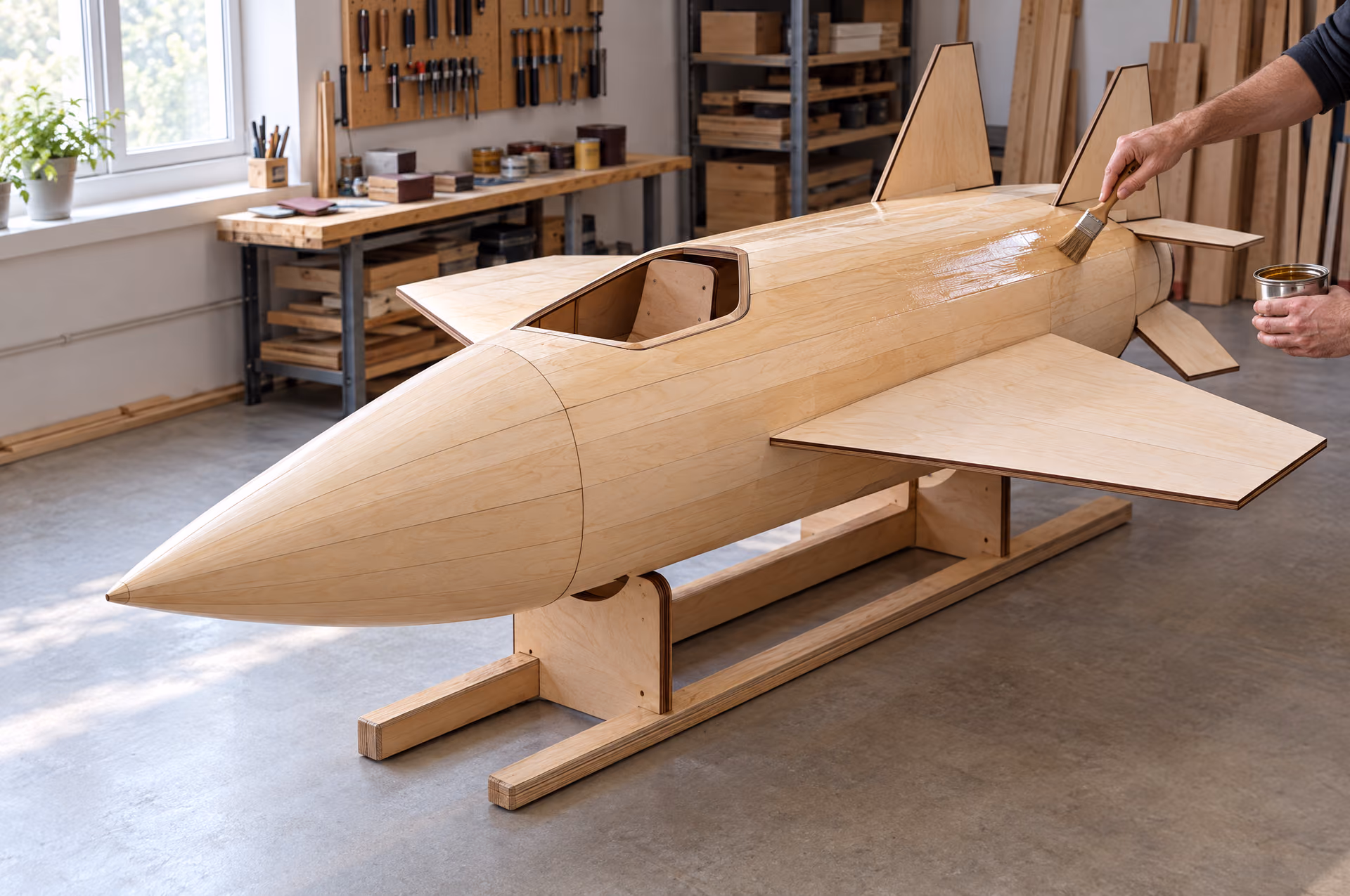

  4. The Jet XL being finished and lacquered

    Finish

    Round the edges, sand and lacquer. Then go through the safety paragraph.

Technical specifications

Technical specifications
Built size3,140 × 2,140 × 790 mm
Sheet size2,400 × 600 mm
Weight builtabout 43 kg
Room to build4.5 × 3.5 m
DifficultyChallenging
Article numberstraaljager-xl

To buy yourself

Bolts, bearings, wheels, axle, glue and lacquer are not in the kit. This is what you need, with the quantities from the design.

To buy yourself
Spruce stringer8 pcs, 12 × 12 mm, lengte ca. 3140 mm
Wood glueas needed
Water-based lacqueras needed

Downloads

There is no sample page for this product yet.

Safety

  • This is a kit for adult builders. It is not a toy and carries no CE marking.
  • Round and sand all edges and corners smooth before the model is used.
  • Use only under adult supervision.
  • Maximum load: 35 kg. Check glue joints and bolts before every use.
  • Lacquer or paint the whole; let the finish cure completely.
